Translations

The Qt Workflow

The workflow for extracting translatable strings from FlightGear Qt C++ source code or QML files is rather standard and is entirely managed by the core development team. Scenery, aircraft or add-on developers normally don’t need to bother with that.

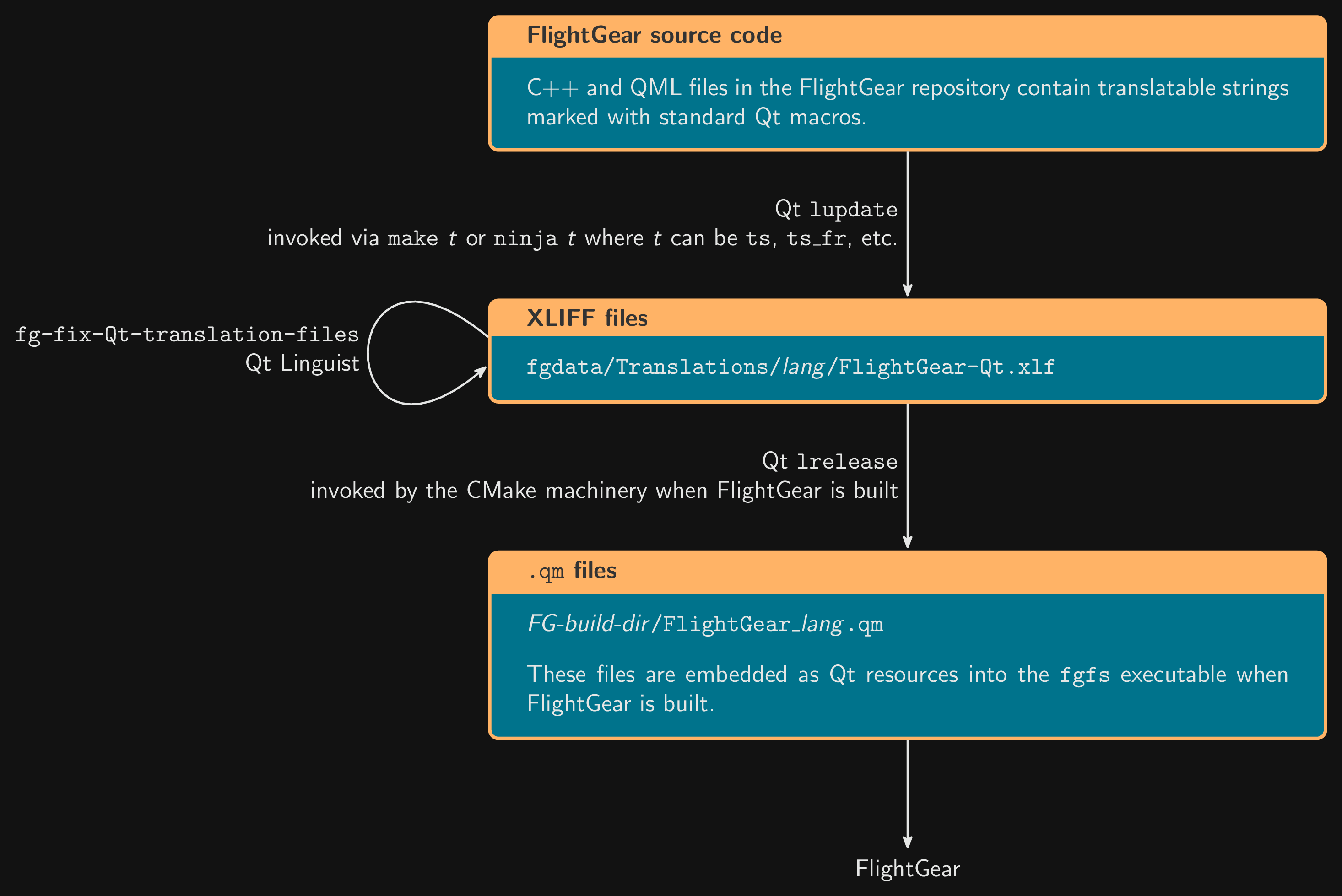

The Qt translation workflow

Qt translatable strings are extracted from C++ and QML files by the Qt lupdate tool. The result is written to fgdata/Translations/lang/FlightGear-Qt.xlf files.

The fg-fix-Qt-translation-files program was used to fix problems in the FlightGear-Qt.xlf files generated by lupdate. Now that we pass -disable-heuristic similartext to lupdate, it seems that these problems don’t occur anymore.

The Non-Qt Workflow

The workflow for extracting translatable strings from FlightGear code and assets that aren’t managed by the Qt library is non-standard, because it needs to integrate with assets in FlightGear-specific formats such as XML description of GUI dialogs, other PropertyList files such as weather scenarios, and hopefully Nasal code in the future. It relies on Python scripts and modules located in the fgmeta-python repository that are shipped in the flightgear Python package (fgmeta-python is the source repository of the package). The scripts and modules extract translatable strings from FlightGear assets and write the result to XLIFF files that have the .xlf extension. XLIFF is a standard XML-based format; this allows translators to use nice existing tools such as Qt Linguist to update and review their translations.

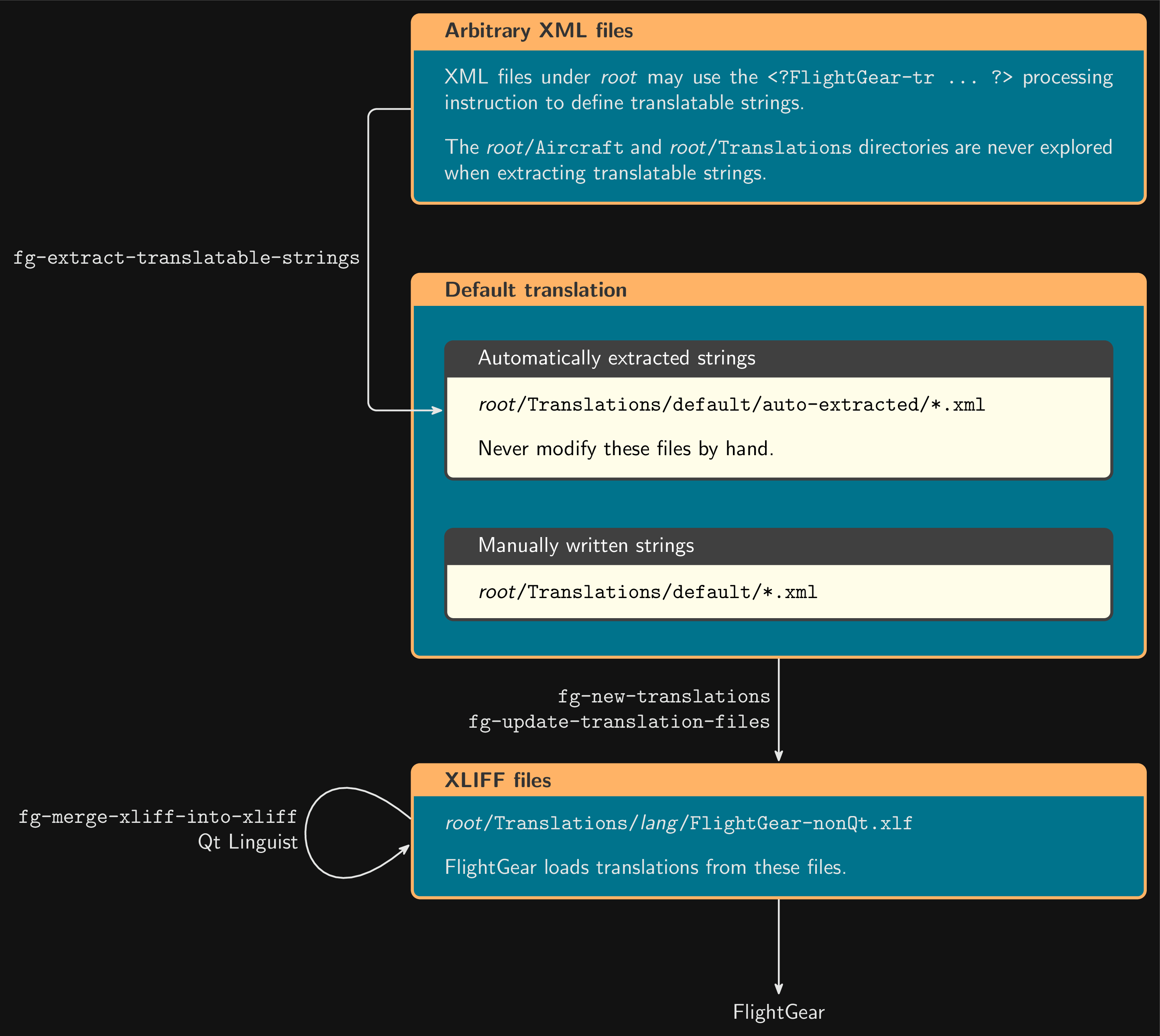

The non-Qt translation workflow

The translation scripts work on a directory hierarchy that has to be specified and corresponds to either FGData or an aircraft or add-on. The root directory of this hierarchy is noted root here.

Todo

The following explanations are probably too detailed for this place.

In the simplest case, translatable strings are manually written to XML files in root/Translations/default/. These can be readily found by scripts such as fg-update-translation-files to update the XLIFF files (i.e., those that translators can work on and that FlightGear reads at startup).

Other translatable strings are by necessity located outside root/Translations/ (labels of GUI dialogs, etc.). These have to be extracted from their natural place to some location where fg-new-translations and fg-update-translation-files can find them. This is the job of the fg-extract-translatable-strings script. It searches for XML files under the designated root directory, extracts strings that are marked using the <?FlightGear-tr ... ?> processing instruction and writes the extracted strings to XML files in root/Translations/default/auto-extracted/. These files mustn’t be manually edited; every change to these files must be done by invoking fg-extract-translatable-strings. This ensures that the extracted strings can always be mechanically derived from their sources (that is, the location where the strings are declared with <?FlightGear-tr ... ?>).

Whenever you add, delete or modify an extractable translatable string—for instance, in an XML dialog file—, you should run fg-extract-translatable-strings and commit the resulting root/Translations/default/auto-extracted/*.xml files along with the modification. If this shows more changes than what you did, it means someone most likely forgot to do so in a previous commit (i.e., source and extracted strings were already out-of-sync before your modification).

When extracted strings are properly synchronized with their sources, the command fg-extract-translatable-strings write /path/to/root does not change any file. Thus, one typically runs this command followed by git status to make sure extracted strings are in sync with their sources.
